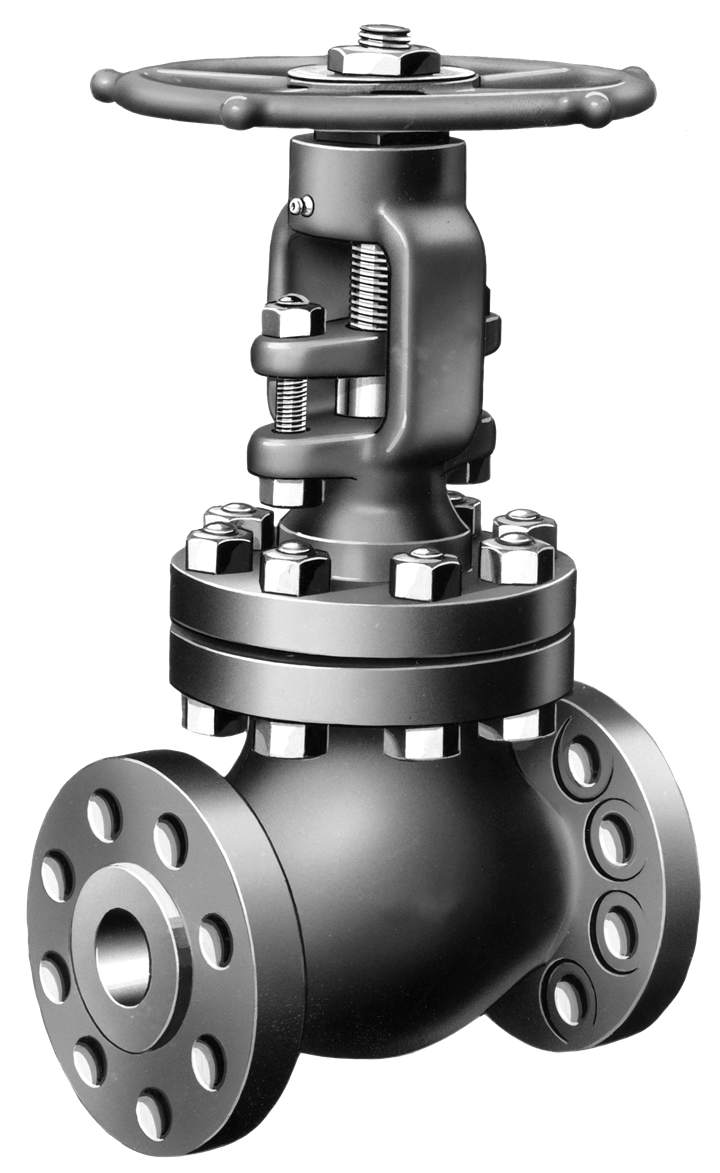

ANSI Globe Valve

● موجودارسال ظرف ۱ هفته

ANSI Globe Valves, designed in accordance with applicable ASME and API standards such as ASME B16.34, API 623, API 602 & BS 1873, are used for precise flow regulation and reliable isolation in industrial piping systems. Featuring a robust body design and a controlled disc-to-seat mechanism, they provide effective throttling performance and dependable shut-off. These valves are widely applied in refineries, petrochemical plants, power generation facilities, and industrial processes across various pressure classes, sizes, and material specifications.

کد کالا		Product Name	Type	Design Standard	Valve Size	Class	Bonnet	End Connection	Body Material	Disc Material	Stem Material	تعداد در بسته	قیمت / بسته — ریال	در سفارش
1005A001	API 602 · 1/2" · #1500 · Bolted · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	API 602	1/2"	#1500	Bolted	SW	A105N + STL	A276 410 + STL	A182 F6a	1	۳۲۵٬۰۹۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 255.1 Test Pressure 383 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۳۲۵٬۰۹۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A002	API 602 · 1/2" · #1500 · Bolted · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	API 602	1/2"	#1500	Bolted	SW	A105N + STL	A276 316 + STL	A182 F316	1	۳۲۵٬۰۹۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 255.1 Test Pressure 383 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۳۲۵٬۰۹۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A003	API 602 · 1" · #1500 · Bolted · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	API 602	1"	#1500	Bolted	SW	A105N + STL	A276 316 + STL	A182 F316	1	۵۵۱٬۰۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 255.1 Test Pressure 383 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۵۵۱٬۰۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A004	ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	1"	#2500	Pressure Seal Bonnet	SW	A105N + STL	A276 410 + STL	A182 F6a	1	۹۰۹٬۱۵۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 425.1 Test Pressure 637.6 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۹۰۹٬۱۵۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A005	ASME B16.34 · 1" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	1"	#2500	Pressure Seal Bonnet	SW	A105N + STL	A276 316 + STL	A182 F316	1	۹۰۹٬۱۵۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 425.1 Test Pressure 637.6 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۹۰۹٬۱۵۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A006	ASME B16.34 · 1/2" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	1/2"	#2500	Pressure Seal Bonnet	SW	A105N + STL	A276 410 + STL	A182 F6a	1	۶۶۱٬۲۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 425.1 Test Pressure 637.6 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۶۶۱٬۲۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A007	ASME B16.34 · 1/2" · #2500 · Pressure Seal Bonnet · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	1/2"	#2500	Pressure Seal Bonnet	SW	A105N + STL	A276 316 + STL	A182 F316	1	۶۶۱٬۲۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 425.1 Test Pressure 637.6 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۶۶۱٬۲۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A008	API 602 · 2" · #600 · Bolted · FLGD-RF · A105N + STLهر عدد	Globe Valve	Plug Disc Type	API 602	2"	#600	Bolted	FLGD-RF	A105N + STL	A276 316 + STL	A182 F316	1	۸۷۰٬۵۸۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۸۷۰٬۵۸۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A009	API 602 · 1" · #800 · Bolted · SW · A105N + STLهر عدد	Globe Valve	Plug Disc Type	API 602	1"	#800	Bolted	SW	A105N + STL	A182 F6a + STL	A182 F6a	1	۳۰۳٬۰۵۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 140 Test Pressure 210 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۳۰۳٬۰۵۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A010	BS 1873 · 2" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	1	۸۷۰٬۵۸۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۸۷۰٬۵۸۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A011	BS 1873 · 4" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	1	۲٬۳۳۰٬۷۳۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۲٬۳۳۰٬۷۳۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A012	ASME B16.34 · 20" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	ASME B16.34	20"	#600	Bolted	FLGD-RF	A216 WCB + STL	A182 F6a + STL	A182 F6a	1	۴۳٬۲۵۳٬۵۰۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Gearbox Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۴۳٬۲۵۳٬۵۰۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A013	BS 1873 · 2" · #300 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۶۵۰٬۱۸۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۶۵۰٬۱۸۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A014	BS 1873 · 3" · #300 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	3"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۱٬۰۷۹٬۹۶۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۰۷۹٬۹۶۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A015	BS 1873 · 4" · #300 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#300	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۱٬۴۹۳٬۲۱۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 51 Test Pressure 77 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۴۹۳٬۲۱۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A016	BS 1873 · 2" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	2"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۸۷۰٬۵۸۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۸۷۰٬۵۸۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A017	BS 1873 · 3" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	3"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۱٬۴۹۳٬۲۱۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۱٬۴۹۳٬۲۱۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
1005A018	BS 1873 · 4" · #600 · Bolted · FLGD-RF · A216 WCB + STLهر عدد	Globe Valve	Plug Disc Type	BS 1873	4"	#600	Bolted	FLGD-RF	A216 WCB + STL	13% Cr + STL	AISI 410	1	۲٬۳۳۰٬۷۳۰٬۰۰۰	—
جزئیات Bore RB Design Pressure 102 Test Pressure 153 Pressure Unit Bar Working Temperature -29°C to 425°C Operation Handwheel Function Throttling Service Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156 Standard Painting System 7E System & RAL 1003 as Top Coat Custom Painting Available upon customer request Country Of Origin Iran Manufacturer Behsazan Jonoob Co. Application Oil & Gas Industries Throttling Service Weight Unit kg ۲٬۳۳۰٬۷۳۰٬۰۰۰ ریال / بسته هر عدد تعداد ● موجود — ارسال ظرف ۱ هفته
