کالا

َشیر دروازه ای ریخته گری (ANSI)

● موجودارسال ظرف ۱ هفته

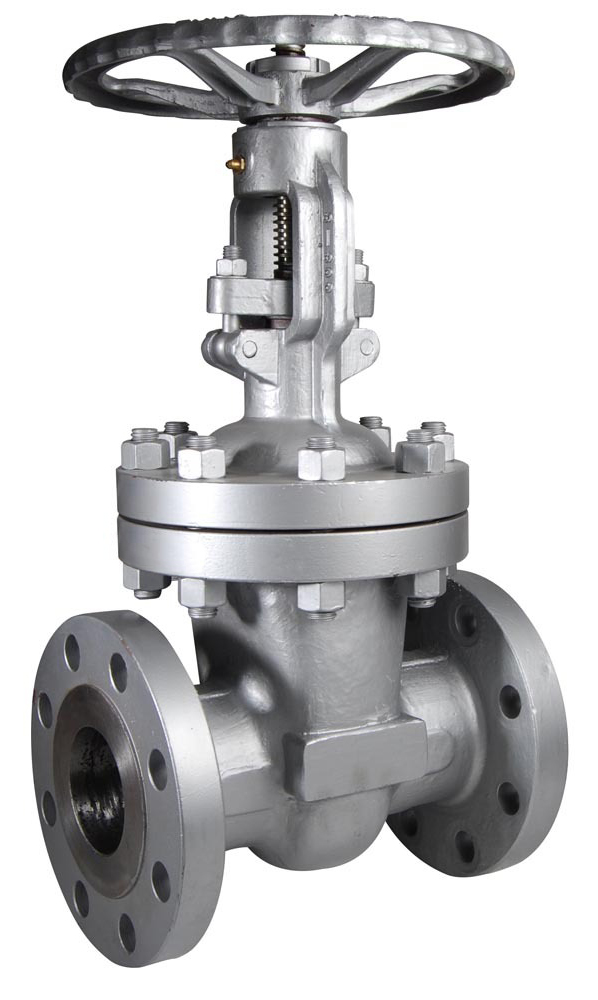

ANSI Cast Steel Gate Valves, designed and manufactured in accordance with applicable ASME and API standards such as ASME B16.34 and API 600, provide reliable flow isolation in industrial piping systems. Their cast steel body construction allows for a wide range of sizes, pressure classes, and configurations, making them suitable for demanding applications in refineries, petrochemical plants, power generation facilities, and oil and gas industries. Designed for dependable shut-off performance, they offer minimal flow resistance and pressure drop when fully open

۱۵ کالا
کد کالاProduct NameTypeDesign StandardValve SizeClassBonnetBody MaterialDisc MaterialSeat MaterialManufacturerقیمت / هر عدد — ریالدر سفارش
2" · #150 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6002"#150BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۵۵۷٬۸۰۰٬۰۰۰—
1006A001

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
19.6
Test Pressure
30
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۵۵۷٬۸۰۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
3" · #150 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6003"#150BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۸۰۸٬۸۱۰٬۰۰۰—
1006A002

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
19.6
Test Pressure
30
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۸۰۸٬۸۱۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
8" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6008"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۴٬۳۲۲٬۹۵۰٬۰۰۰—
1006A003

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۴٬۳۲۲٬۹۵۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
4" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6004"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۱٬۶۱۷٬۶۲۰٬۰۰۰—
1006A004

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱٬۶۱۷٬۶۲۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
2" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6002"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۷۸۰٬۹۲۰٬۰۰۰—
1006A005

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۷۸۰٬۹۲۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
3" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6003"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۱٬۰۸۷٬۷۱۰٬۰۰۰—
1006A006

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱٬۰۸۷٬۷۱۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
4" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6004"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۱٬۶۱۷٬۶۲۰٬۰۰۰—
1006A007

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱٬۶۱۷٬۶۲۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
6" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6006"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۳٬۰۶۷٬۹۰۰٬۰۰۰—
1006A008

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳٬۰۶۷٬۹۰۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
8" · #300 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6008"#300BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۴٬۳۲۲٬۹۵۰٬۰۰۰—
1006A009

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
51
Test Pressure
77
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۴٬۳۲۲٬۹۵۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
2" · #600 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6002"#600BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۱٬۱۱۵٬۶۰۰٬۰۰۰—
1006A010

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱٬۱۱۵٬۶۰۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
3" · #600 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6003"#600BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۱٬۵۸۹٬۷۳۰٬۰۰۰—
1006A011

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۱٬۵۸۹٬۷۳۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
4" · #600 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6004"#600BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۲٬۶۴۹٬۵۵۰٬۰۰۰—
1006A012

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۲٬۶۴۹٬۵۵۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
6" · #600 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6006"#600BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۵٬۴۳۸٬۵۵۰٬۰۰۰—
1006A013

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Handwheel
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۵٬۴۳۸٬۵۵۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
8" · #600 · A216 WCB · 13% Cr + St6 · 13% Cr + St6هر عددWedge TypeAPI 6008"#600BoltedA216 WCB13% Cr + St613% Cr + St6Behsazan Jonoob Co.۹٬۹۰۰٬۹۵۰٬۰۰۰—
1006A014

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
AISI 410
Design Pressure
102
Test Pressure
153
Pressure Unit
Bar
Working Temperature
-29°C to 425°C
Operation
Gearbox
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۹٬۹۰۰٬۹۵۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
24" · #150 · A352 LCB · SS304 · SS304هر عددWedge TypeAPI 60024"#150BoltedA352 LCBSS304SS304Behsazan Jonoob Co.۳۷٬۹۳۰٬۴۰۰٬۰۰۰—
1006A015

جزئیات

Bore
FB
End Connection
FLGD-RF
Stem Material
SS304
Design Pressure
19.6
Test Pressure
30
Pressure Unit
Bar
Working Temperature
-46°C to 340°C
Operation
Gearbox
Function
On/Off
Service
Sour Oil & Gas Service & Compliant with NACE MR0175 / ISO 15156
Standard Painting System
3-Layer Coating | RAL 1003 Top Coat
Custom Painting
Available upon customer request
Manufacturer
Behsazan Jonoob Co.
Application
Oil & Gas Industries Isolation Service
Weight Unit
kg
۳۷٬۹۳۰٬۴۰۰٬۰۰۰ ریال / بسته
هر عدد
تعداد
● موجود — ارسال ظرف ۱ هفته
